Electric pedestrian controlled truck with stand-on platform

Electric pedestrian stacker with support arm lift 2000 kg

1500 - 2905 mm
2000 kg

Compact truck with fixed and folding platform.
Lithium-ion battery variants from 100 to 200 Ah.
The Floor-Spot provides improved visibility in areas of the warehouse with restricted visibility.
Increased safety with HGV detection for automatic speed adjustment when entering and exiting HGVs.

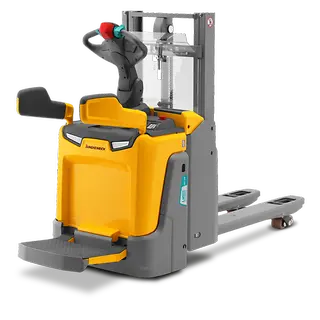

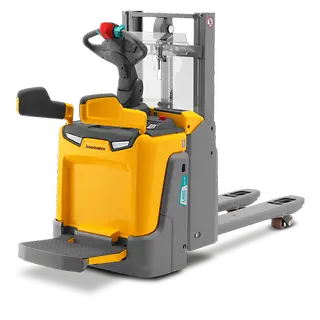

ERD 120i

Our agile and versatile ERD 120i electric pedestrian stackers are ideal companions for daily goods transport over longer distances as well as loading and unloading HGVs. The integrated support arm lift enables the simultaneous transport of two pallets in double-decker operation. With its enhanced manoeuvrability, the ERD 120i effortlessly overcomes uneven floors, ramps or loading bridges. Selectable platform variants and masts, together with scalable lithium-ion battery solutions from 100 to 200 Ah, offer configurations precisely tailored to your purpose. The stand-on platform with its robust three-sided protection ensures a high level of safety for operators, while convenient charging options and a spacious operator’s compartment with well-considered ergonomics make work particularly comfortable.

Li-Ion

No worries – no compromise

The Jungheinrich Li-ion Guarantee Plus offers up to 8 years of reliable performance for our high-quality lithium-ion batteries. Confident in their high performance and long service life, we also guarantee a hassle-free switch back to your original technology within 6 months of delivery.

Features

Efficient goods handling

Ideal for double-decker loading of HGVs, goods transport or use as a stacker.
Precise, gentle lifting of loads with the standard proportional hydraulics.
Maximum manoeuvrability and agility in confined warehouse areas.

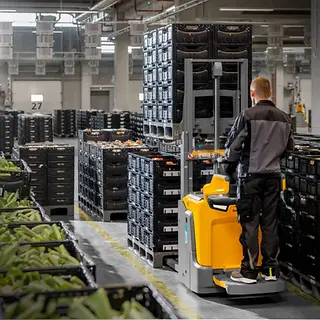

Double-decker operation for a noticeable increase in goods throughput.

Scalable lithium-ion battery solutions

Lithium-ion technology integrated as standard for maximum availability.
Wide range of lithium-ion battery options from 100 to 200 Ah with fast and opportunity charging capability.

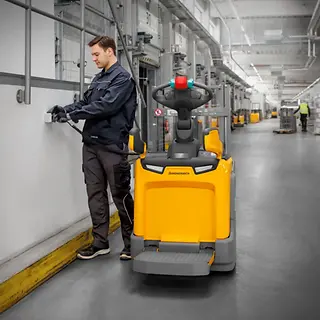

Charging at any socket with the built-in charger as standard or optionally in the performance-optimised 70 A version.

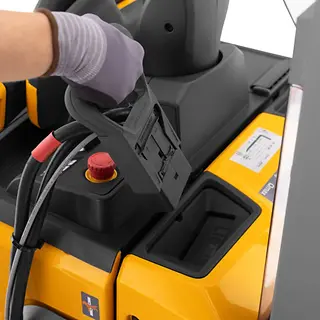

Comfort charging interface for easy and rapid charging up to 320 A available as an option.

Maximum stability when driving

High protection and optimum ergonomics for operators thanks to the spacious stand-on platform with 3-sided protection made of solid steel.
Coupled support wheels ProTracLink for high stability.
Ideal for use on loading ramps or when loading and unloading HGVs.

Safe and comfortable working

HGV detection for automatic speed reduction and illumination at HGV entrances and exits.
Floor-Spot mounted in a protected position within the truck contour to increase safety in warehouse areas with poor visibility.
Adjustment of the travel speed on curves with curveCONTROL.
Ergonomic, safe steering in side or front position thanks to smartPILOT with automatic central position.
Optional one-handed operation for operating the mast and support arm lift with one hand.

Variable truck equipment

Wide range of stand-on platforms: fixed with 3-sided protection in the compact or comfort version, as well as foldable for flexible use in pedestrian or ride-on mode.
14 masts up to 2,905 mm lift height with two fork lengths (1,150 and 1,190 mm).
Three travel programs for adapted acceleration and travel speeds up to 9 km/h.
Suitable for cold-store use with lithium-ion technology.

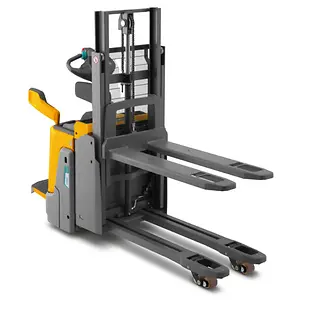

Integrated support arm lift

An additional lifting mechanism raises the support arms independently of the forks.
Effortless crossing of uneven ground, ramps or loading bridges.
Double-decker operation for transporting additional goods on the support arms.

Additional equipment
