Pedestrian stacker 1.2 - 2.0t

2500 - 6000 mm
1200 - 3000 kg

Lift heights up to 6 m and high residual carrying capacities
Electric tiller steering for fatigue-free working
Proportional hydraulics for precise and gentle depositing and lifting
Long safety-tiller and optimum view at the forks
Quick lateral battery exchange for multiple shift application

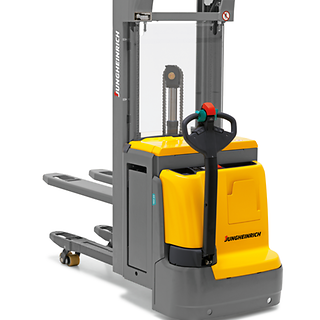

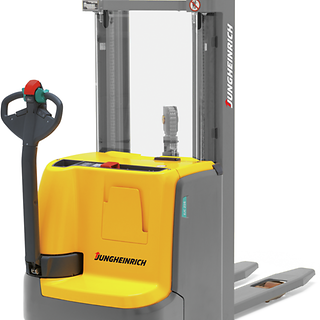

EJC 230

The powerful and robust EJC 2 are perfectly suited for intense applications and for stacking of heavy cargo in great heights. For this purpose, they are also equipped with safety features, such as a long tiller. Due to the perfect tuning of steering technology and our low-maintenance and powerful 3-phase AC technology the energy consumption of these robust stackers remains surprisingly low. This allows for high efficiency rates at low operating costs. Particularly multi-shift usage is no problem, due to the simple lateral battery exchange. Additionally, the EJC 2 impress with their ergonomics and usability. The proportional hydraulics, for example, ensure gentle and precise lifting and depositing, even of heavy cargo. And the liftPLUS option enables fast stacking.

Li-Ion

No worries. No compromise.

With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 8 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.

Learn more

100 % satisfaction. Guaranteed.

We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.

Learn more

Features

Intelligent drive and steering technology

Greater performance while simultaneously reducing operating costs using 3-phase AC motors perfectly tuned to the in-house developed controller.
High efficiency levels with excellent energy management.
Fast acceleration.
Rapid direction change.
Maintenance-free drive motor without carbon brushes.

Long operating period

Long service life with battery capacities up to 200 Ah.
Built-in battery charger (optional) for easy charging at any standard 230-V socket (also available with rapid charging function for charging during a shift).

Lithium-Ionen-Technology

High availability thanks to extremely short charging times.
No battery exchange required.
Saving costs due to longer service life and zero maintenance as compared to lead-acid batteries.
No charging rooms and ventilation required as there is no build-up of gas.

Always informed

2-inch display (optional) as central information and adjustment instrument.
Battery charge status, number of operating hours and event messages.
Choice of 3 travel programs.
Activation of the truck by key switch or by EasyAccess via softkey, PIN code or optional transponder card.

Safe stacking and retrieval

Intuitive control of all lifting and lowering functions with the multifunctional tiller arm.
Precise and gentle lifting of the load with the speed-controlled and noise-reduced hydraulic motor.
Gentle depositing of loads using proportional hydraulics.
Automatic reduction of travel speed with raised load.
Four-wheel concept for high stability.
liftPLUS (optional): The EJC 214/216 achieves a significantly higher lift speed (up to 400 kg) in comparison with the production version.

Robust construction

1-piece, hot-rolled box section forks.
Torsion-resistant mast with high residual carrying capacities.
Battery lid made of solid sheet steel.
Front apron reinforced with additional beading and contouring.

Service-friendly design

Support wheel with bayonet mechanism for simple wheel replacement with only slightly raised truck.
Tiller electronics sealed completely against moisture and dirt as per IP 65.
Electronic controls sealed for protection as per IP 54.
With EJC 212 (optional), on-board charger is protected against moisture and dirt as per IP 54.

Practical storage compartments
