The powerful ERC zi electric stacker truck is equipped with lithium-ion technology as standard – for a revolutionary, extremely compact truck design. This manoeuvrable truck is versatile and designed for safe stacking and retrieval operations at heights of up to 6 m. It can transport goods over medium to long distances and is suitable for order picking. An additional lifting mechanism on the support arms enables two pallets to be picked up instead of just one, thereby increasing efficiency and throughput. Its increased ground clearance enables the ERC to overcome thresholds, unevenness or ramps with ease. Intelligent stacking assistance systems make load handling easy and safe. Perfect ergonomics are ensured by the stable, cushioned stand-on platform and smartPILOT with automatic centring, which enables one-handed truck control. Good visibility thanks to the panoramic window (optional) and unrestricted forward view.
The first electric pallet stacker with lithium-ion technology and a revolutionary new truck design.
It’s not always enough just to make things better, sometimes they need to be redefined all-round.The ERC 216zi, the world’s first li-ion stacker truck, shows how it’s done. The lithium-ion battery enables an entirely new and revolutionary truck design. This results in an ultra-compact and extremely manoeuvrable pallet stacker that gives you much better throughput performance even in narrow warehouse surroundings. The new design also provides a fixed platform that protects the driver on three sides and boosts productivity thanks to perfect ergonomics and comfort. On top of these benefits, you get optimum energy efficiency and availability, even in multi-shift operations, thanks to lithium-ion power from Jungheinrich.
Stacker trucks have never been so maneuverable.
The lithium-ion battery in the ERC 216zi enables an entirely new truck geometry with optimum weight distribution, giving the vehicle much more freedom of movement. And despite its ultra-compact dimensions - about 17 cm more compact than a comparable truck with a fixed platform - this unique stacker truck offers improved operational stability, residual capacity and driving characteristics. Its overall operating speed is also higher, without giving the driver additional tasks to perform. The result: far greater potential for better throughput performance.
Greater driver convenience – improved warehouse productivity.
The revolutionary new vehicle geometry of the ERC 216zi frees up new space for working ergonomically. The fixed platform provides support and convenience, especially during prolonged operating times. The controls are ideally arranged, so drivers can operate the truck intuitively. The easy-to-follow 4-inch screen is recessed in the dashboard panel, and a well-designed storage system lets the drivers customise their working area. The technically refined hydraulic system also assists the driver: the mast entry cushioning system makes smooth work of mast movements, and the raising and lowering action adapts to suit the current load - perfectly, quickly, and with no jerky movements.
Stay ahead of the competition with lithium-ion power.

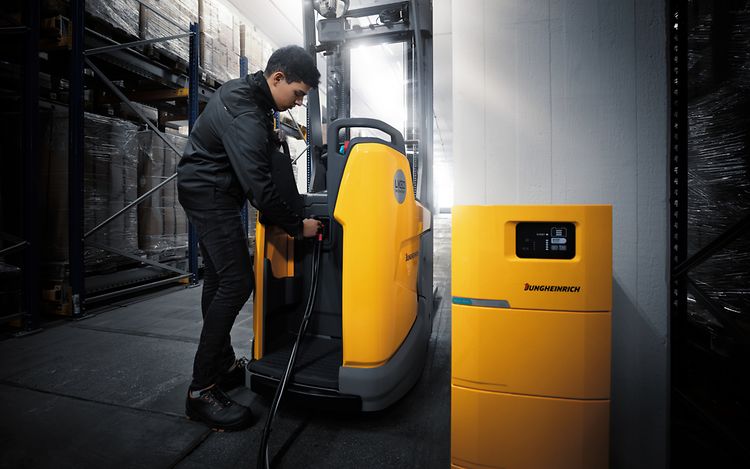

The lithium-ion battery combines perfectly with the vehicle for optimum operation. The benefit offered by the lithium-ion technology, particularly the rapid and intermediate charge with extremely short charging times, gives you the flexibility of use at all times. The ultra-compact structure of the ERC 216zi makes it much more manoeuvrable for the operator, with an impressively high operating speed even in narrow warehouse environments.
Protection on all sides combined with maximum freedom of movement.
Despite the small overall dimensions of the truck, the fixed platform of the ERC 216zi with protection on three sides provides the driver with ample room to move. This unique vehicle design is only possible thanks to the lithium-ion technology. The optional panoramic protective roof provides additional protection against falling loads while maintaining optimal upward vision. Many optional assistance systems are available to augment the safety concept of the ERC 216zi. Not only will they increase the precision and speed of your work processes, but also the level of safety for drivers, goods and your warehouse.
Maximum goods throughput
Optional assistance systems
Fixed stand-on platform
Overhead guard in accordance with DIN ISO 6055 (optional)
Additional ground clearance with support arm lift
|Model||Load capacity||Lift height||Travel speed||Overall length||Battery voltage|
|ERC 214zi||1,400 kg||6,000 mm||12 km/h||2,395 mm||24 V|
|ERC 216zi||1,600 kg||6,000 mm||12 km/h||2,395 mm||24 V|
