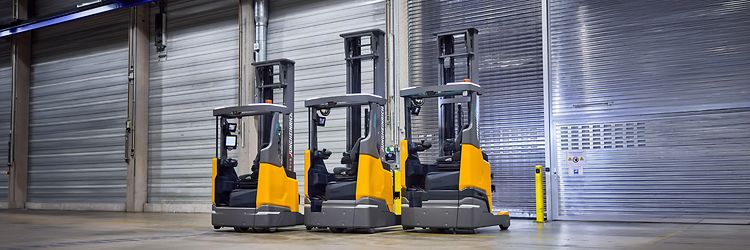

Reach Trucks
What is a reach truck?
Jungheinrich electric reach trucks are industrial trucks that are particularly effective in warehouses with high pallet density. They offer three major advantages: their compact design, their impressive lift heights of up to 14,000 mm and their reach mast technology.
How does a reach truck work?

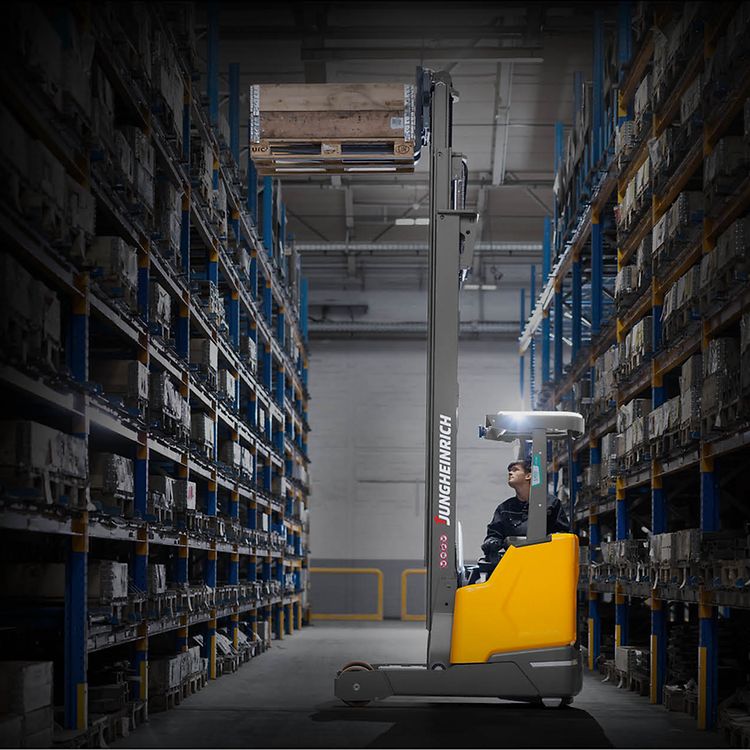

When picking up loads, the reach truck moves its mast forward, guiding the forks into the pallet. This movement is known as forward reach. The mast then retracts, pulling the goods back between the support arms for transport. This principle reduces the overall length of the truck, making it particularly manoeuvrable. This allows our reach trucks to move loads of up to 2.5 tonnes quickly and safely to their destination.
Where in the warehouse are electric reach trucks suitable?
Electric reach trucks show what they can do in narrow racking aisles, where they make optimum use of the available space. Thanks to the reach mast and the compact design, they navigate narrow aisles with ease. Jungheinrich reach trucks also deliver particularly strong acceleration, as well as high lift and reach speeds, helping to increase throughput.
With different series, we also cover the individual application requirements of your operation. This allows you to handle fast pallet throughput even at high lift heights and cover long travel distances at high travel speeds.
Are reach trucks suitable for indoor and outdoor use?
Alongside a wide range of lift heights and capacity classes, the Jungheinrich reach truck portfolio also includes trucks for different floor conditions in indoor and outdoor applications. This ensures a high level of driving safety on any terrain. For cold store or outdoor use, you can also equip the trucks with a cabin.
What economic benefits do reach trucks offer?
With Jungheinrich reach trucks, you benefit from a wide range of technical and ergonomic advantages. These include our innovative energy recovery technology during braking, which significantly reduces energy consumption. This can reduce your operating costs by up to 20% over the long term. Numerous control and assistance functions are also available for greater efficiency and safety, from different travel programmes and the addedVIEW Positioning camera system through to lift height preselection.

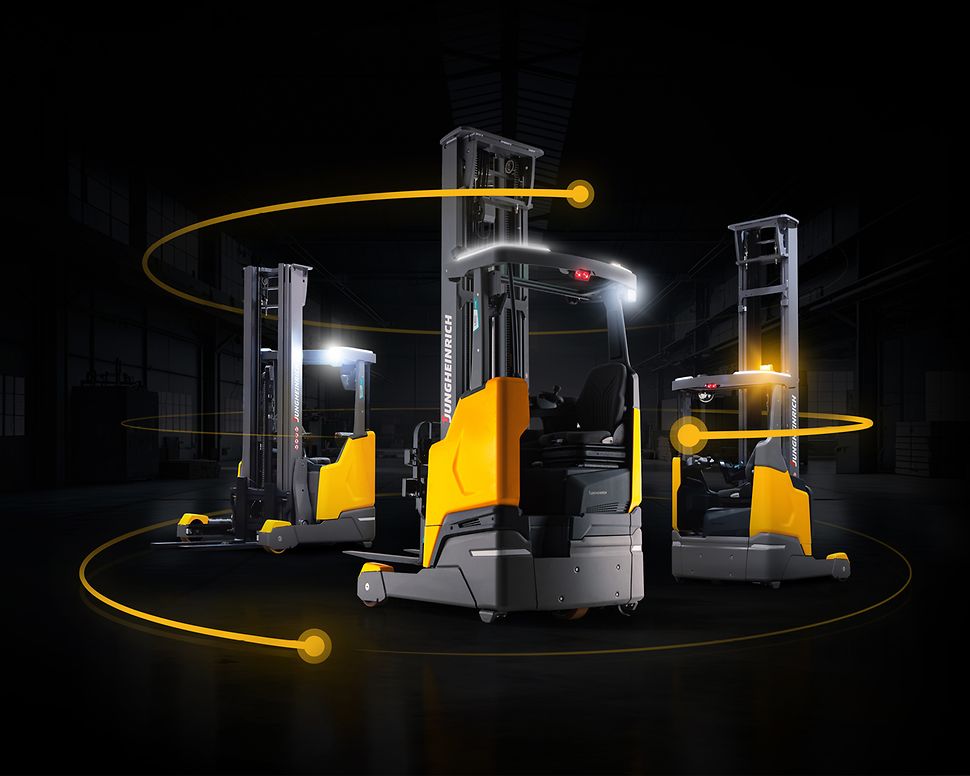

ETV 2i, 3i and 4i: Your truck. Your performance.
Our ETV 214i/216i, ETV 314i–325i and ETV 414i–425i reach trucks are designed for anyone who values safety, ease of operation and proven Jungheinrich quality. They deliver exactly the performance you need — from occasional use to intensive three-shift operation.
Eficiency you can count on.

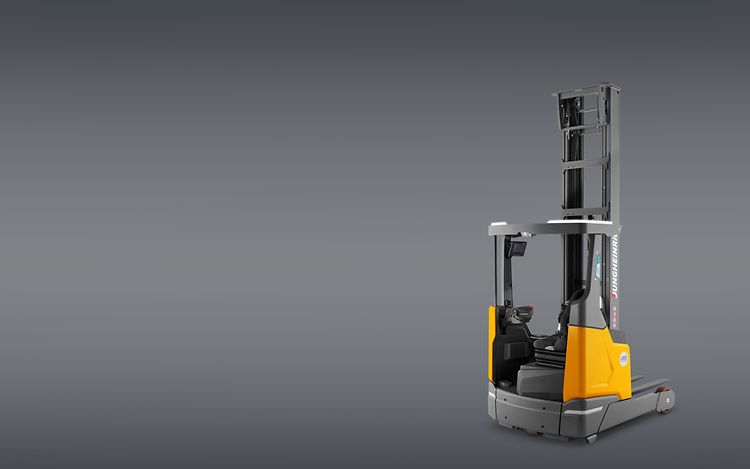

Looking for a reach truck that is agile, robust and powerful — while keeping costs under control? With the ETV 214i/216i, you get performance precisely matched to your day-to-day warehouse requirements. No more. No less. The ETV 2i series also impresses when it comes to ergonomics: the low entry makes getting in and out noticeably easier for your operators.
Type of use: light- to medium-duty applications
Capacity: up to 1,400 kg or 1,600 kg
Lift height: up to 10,700 mm
Battery options: 230 Ah or 460 Ah
Productivity that raises standards.

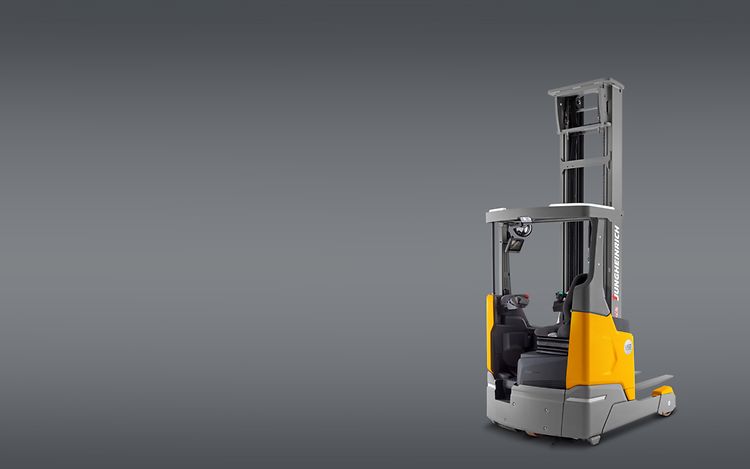

When your requirements increase, the ETV 314i–325i deliver the right performance for medium- to heavy-duty applications. High load capacities and powerful lifting performance ensure efficient handling. Comfort remains a priority too: the optional entry step makes getting in and out even easier.
Type of use: medium to heavy-duty applications
Capacity: from 1,400 kg to 2,500 kg
Lift height: up to 14,000 mm
Battery options: 460 Ah or 690 Ah
Also available (optionally):
- Performance function loweringPRO for market-leading lowering speeds
- Performance function reachPRO for fast reach movements.
Performance that moves you forward.

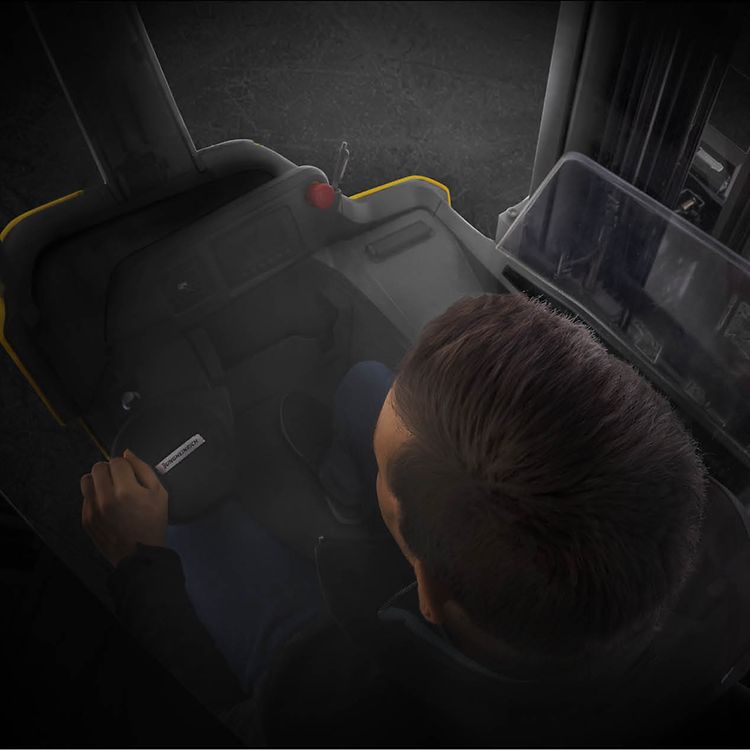

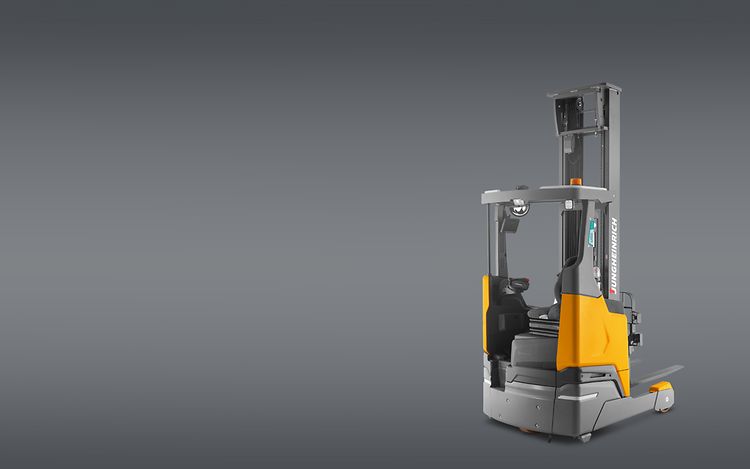

Does every second count in your warehouse operation? With the ETV 414i–425i, you can handle the most demanding material handling tasks with confidence. Market-leading lifting and lowering speeds significantly accelerate frequent pallet movements as well as fast storage and retrieval. The elevated seating position gives operators a better view, while the spacious operator position ensures comfortable working even over longer periods. You are also supported by a wide range of assistance systems, including a positioning camera system for optimum visibility during storage and retrieval.
Type of use: high-intensity applications with increased throughput
Capacity: from 1,400 kg to 2,500 kg
Lift height: up to 14,000 mm
Battery options: 460 Ah or 690 Ah
Included as standard:
- Performance function loweringPRO for market-leading lowering speeds
- Performance function reachPRO for fast reach movements
- Performance function liftingPRO for market-leading lifting speeds.
No compromises. With lithium-ion technology from Jungheinrich.
As a leading lithium-ion provider, we offer holistic solutions, state-of-the-art technologies, comprehensive services and a broad product portfolio to make your company more efficient and even more successful – after all, why should you have to compromise?
The result: with a lithium-ion reach truck, you can achieve consistently high performance. Rapid or intermediate charging can be carried out during breaks or downtimes for maximum availability, the service life of the truck is increased by up to three times and the lack of maintenance saves time and resources. In addition, Li-ion reach trucks consume up to 20 % less energy in daily use compared to the lead-acid alternative.
We will be happy to advise you
Make an appointment now!
Your Specialist Sales
Contact
Phone
Buying, leasing or renting reach trucks
Have you already decided on a suitable model? When you submit a product enquiry, our consultants will give you comprehensive advice on our models and help make sure you buy the right reach truck. You can also order accessories for reach trucks, such as transport boxes, from the Jungheinrich PROFISHOP.
We would also be happy to help you choose suitable financing options for individual models or an entire fleet of reach trucks: Leasing or hire purchase? Together we will find the right financing option for your business. If you need to expand your truck fleet for a short period of time, you can take out a short-term lease on a suitable truck from Jungheinrich. Speak to one of our rental truck consultants to find out how we can supply your company with suitable forklift trucks in the short term.
