Stage EZS 570_580_590_5100

Tow tractor 7.0 - 10.0t

  • 7,000 - 10,000 kg
  • Robust construction also for outdoor use.
  • Fully sprung chassis for comfortable working.
  • Automatic parking brake with roll-back protection.
  • Impulse control.
  • Powerful, maintenance-free 3-phase AC drive motor.

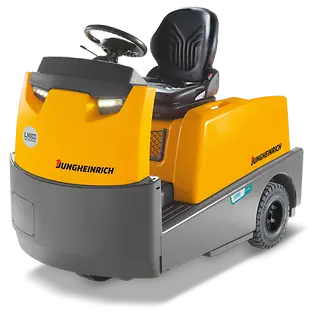

EZS 570-5100

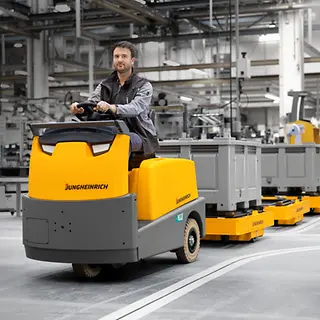

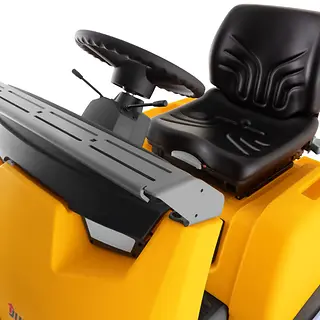

Our solid and dynamic series 5 sit-on tow tractors are ideal for the efficient transport of loads up to 10 t in the tow train – especially in combination with trailers from Jungheinrich. Rely on solid power for indoor and outdoor use with a sturdy steel frame that will surely last a whole tractor life. The powerful and efficient drive concept is supported by a 48-V three-phase motor with fast acceleration and high end speeds. The coupling, which is available in different versions, is clearly visible from the sitting position and easy to reach. The fully cushioned suspension protects the back of the driver as well as the vehicle. A spacious and comfortable operator position offers ample legroom, while steering wheel, controls, travel direction switch and indicator lever are all within easy reach. The low stand-on platform allows effortless entry.


With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 8 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.

Learn more

We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.

Learn more


Model Overview

Model Towing capacity load Travel speed Overall length Battery voltage
EZS 570 7,000 kg 18 km/h 1,828 mm 48 V
EZS 580 8,000 kg 18 km/h 1,828 mm 48 V
EZS 590 9,000 kg 18 km/h 1,828 mm 48 V
EZS 5100 10,000 kg 18 km/h 2,048 mm 48 V
