- High energy efficiency
- Individual options for an optimum workstation

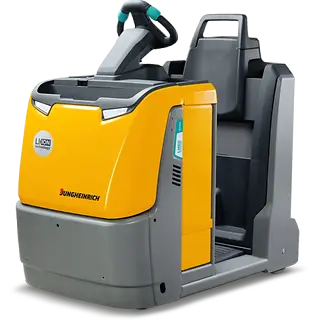

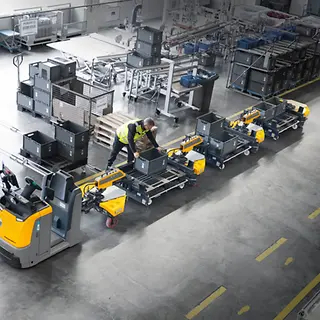

Robust, versatile and economic – these are the advantages of our EZS 350 electric tow tractor. These high-performance tow tractors are suitable for any application in tow trains with tow loads up to 5,000 kg.

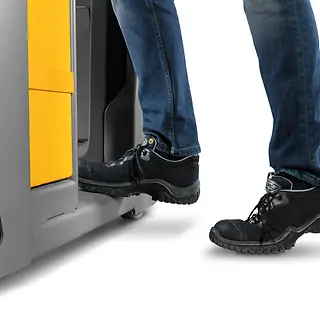

In addition to outstanding ride comfort and safety, our EZS 350 tow tractor also offers increased performance with low energy consumption:Optimised handling even in difficult situations.curveCONTROL steer-angle-dependent assistance system for stable cornering.Easily accessible coupling: From the operator position, the coupling is clearly visible and easy to reach. Different couplings are available.Generous and comfortable operator position: The low stand-on platform makes it easy to climb aboard.Automatic parking brake with anti roll-back function: When the truck comes to a halt, the tow tractor and trailer are automatically secured.Powerful and efficient 3-phase AC drive motor provides strong acceleration and high top speed.Regenerative braking: The braking energy is fed back into the battery, thereby extending its operating period.The optional LED lighting is environmentally friendly and not sensitive to vibrations.Fast battery replacement: The battery can either be lifted out by crane or optionally replaced from the side.The comfort features guarantee specific adaptation to all applications.
The jetPILOT multifunctional steering wheel also features:Intuitive and comfortable operation, similar to a car, plus a safe and secure grip.Reduced strain on neck and spinal column when cornering.One-handed operation and automatic return of the steering wheel to straight line travel.Adjustable to individual body size.
Sophisticated ergonomics and technology in the form of our EZS 350 ensure safe, effortless working combined with cost and energy efficiency.
Powerful and efficient drive concept
- Powerful acceleration and high top speed.
- High efficiency levels with excellent energy management.
- Safe cornering speed due to Curve Control.
- Regenerative braking with energy recovery.
Comfortable and safe operation
- The balanced frame guarantees traction at all times.
- Different backrests available.
- Additional cushioned stand-on platform (optional).
- Programmable crawl speed button allows travel at reduced speed.
- Three alternative travel programs can be set to suit every specific need.
Rugged construction for the toughest applications
- Impact-resistant steel drive panel.
- High-quality stainless steel skirt raised extra high on the front panel.
- Robust LED lights (optional).
Long operating times available with lead-acid battery
- Different batteries available from 375 to 620 Ah.
- Lateral battery exchange option for multi-shift environments (optional).
Complete overview provided by central display and setting instrument
- Activation of the truck by EasyAccess via softkey, PIN code or transponder card (optional).
- The 2-inch display provides information on the battery discharge status, number of operating hours, travel speed as well as error codes and offers the option of selecting from three travel programs via softkey (optional).
All the better to see and be seen
- Integrated dayLED daytime running lights for better visibility in poorly lit areas (optional).

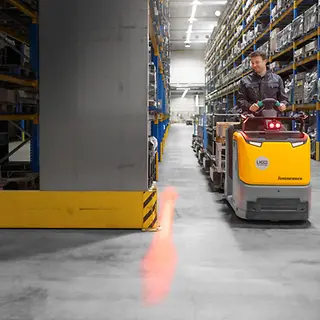

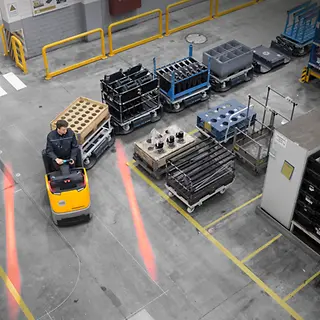

- Floor-Spot – significant reduction in the risk of collision in blind spots due to a red dot of light projected onto the floor approx. 3 m in front of the truck (optional).
- Different couplings.
- Reverse movement device for simple coupling and decoupling.
- Hydraulic or electric supply connections for our GTE and GTP trailers.
- Sturdy, universally applicable options bracket, e.g. for radio data transmission components.
- Further options for the right configuration of the tow tractor.
- High degree of availability thanks to extremely short charging times.
- No battery exchange required.
- Cost savings due to longer service life and low maintenance compared with lead-acid batteries.
- No charging rooms and ventilation required as there is no build up of gas.
- Longer service life with 5-year Jungheinrich guarantee.
