Electric forklift truck 1.3 - 2.0t

2020 - 7000 mm
1600 - 2000 kg

Robust electric four-wheel counterbalance forklift trucks for indoor and outdoor use.
Powerful lift hydraulics for maximum performance even with attachments.
Multifunctional touch display with high user-friendliness.
Ergonomic design and excellent all-round visibility.

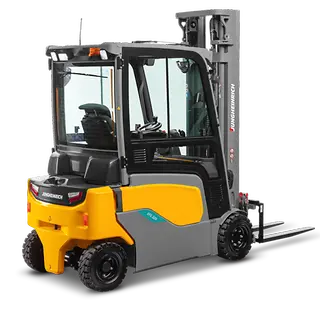

EFG 316–320

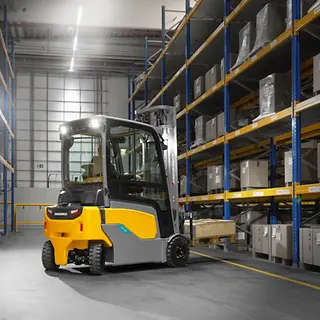

Our robust and agile series 3 electric four-wheel counterbalance forklift trucks are ideal for indoor and outdoor transport, on uneven floors and for applications with attachments. The pendulum steering axle and four wheels ensure optimum driving comfort and high stability. The innovative truck design with angled B-pillar ensures optimum all-round visibility, while smart assistance systems such as the zone-based zoneCONTROL collision protection system and the AI-supported addedVIEW person detection increase occupational safety. A spacious workplace with significantly improved acoustics, increased legroom and a multifunctional 4.3 inch touch display provides the optimum basis for focused, fatigue-free work.

Benefits

Connected Trucks

Use the data from your trucks to save time, energy and money and increase efficiency. Our Telematics box (ex factory) provides you with a free fleet management starter package that can be flexibly expanded with various hardware and software components.

Features

Electric parameter steering

Dynamic steering behaviour depending on the selected travel program.
Unnecessary steering movements are minimised.
Slim steering column creates more legroom.

Optimised driving and working behaviour

Mast damping at the mast transitions and soft-stop function at the lower end stop of the forks.
High lift speeds for fast lifting.
Adjustable lever and axle assignment of the controls.

Professional battery management

Proven lead-acid battery technology for maximum reliability and high efficiency.
Battery door for easy battery exchange.
Individual exchange systems using low-lift pallet trucks, stackers or cranes.
Space-saving charging and simple maintenance.
Safe, horizontal transport of the battery unit.

Best all-round visibility

Angled B-pillar with a blind spot reduced by up to 65% when reversing.
Low panel wall design for an unobstructed view of the forks and load.
Optional panorama roof window.

Innovative safety solutions

Standard automatic parking brake to prevent uncontrolled rolling back on ramps and inclines.
Optional SmartStripe LED light strip for increased safety in the warehouse, indicating charging progress and other vehicle operating states.

Optional assistance systems

Pre-operation check for the safety inspection of the truck before starting work.
addedVIEW digital camera systems for improved visibility and safety in demanding operating environments.
zoneCONTROL for monitoring critical warehouse areas and protecting against collisions.
Reduction of travel speed when cornering due to curveCONTROL.
drive / liftCONTROL for automatic reduction of the working speed from a defined lift height.

Adaptable operating concept

Five configurable travel programs including ECO mode.
Three control systems: soloPILOT, duoPILOT and multiPILOT.
Stepless single-point adjustment of the armrest.
Steering column adjustable in height and tilt.
Adjustable lever and axle assignment of the controls.
Single or double pedal operation.

Ergonomic workplace

Noise-optimised truck concept with improved decoupling of the cabin from the chassis and reduced human vibrations.
Enlarged foot-well and optimised steering column for additional knee and legroom.
Low step tread for safe entry and exit.

Multifunctional HMI concept

4.3-inch touch display including EasyAccess Softkey access system to protect against unauthorised use.
Ergonomic keypads on the armrest for comfortable, intuitive operation.
External power supply via optional USB ports in the armrest or the side storage compartment.







Model Overview

Model	Load capacity	Lift height	Travel speed	Overall length	Battery voltage
EFG 316	1,600 kg	7,000 mm	17 km/h	3,247 mm	48 V
EFG 318	1,800 kg	7,000 mm	17 km/h	3,267 mm	48 V
EFG 320	2,000 kg	7,000 mm	17 km/h	3,267 mm	48 V

Downloads

Factsheet EFG 3 pdf (1.3 MB)

Specsheet EFG 3 pdf (780.2 KB)
