- Multi-pallet transportation (of up to 3 pallets)
- Ergonomic operator position layout
- 2 drive motors
- Lateral battery exchange
- 360° steering
- 3-phase AC technology (48 V) for high torque and dynamic movement

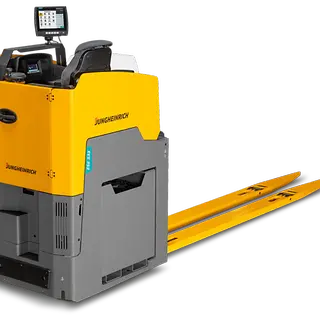

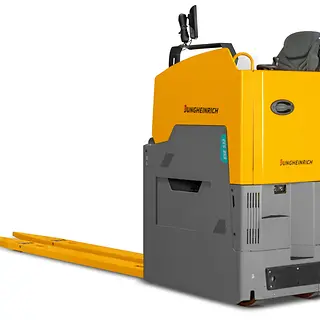

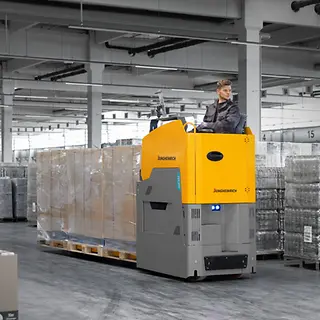

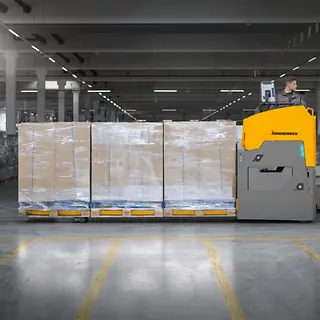

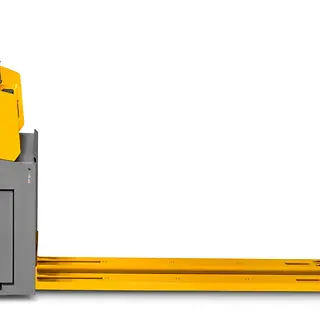

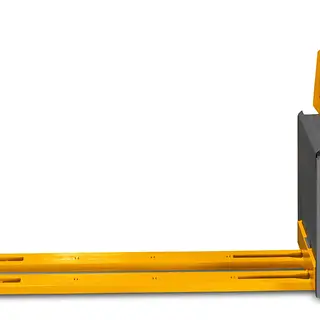

Our ESE 533 electric sideways seated pallet truck is ideal for multi-pallet transport over long distances. Their 48-volt 3-phase AC motors ensure smooth starts, powerful acceleration and high maximum speeds. They thus provide the perfect basis for high throughput rates.
This high performance level is extremely easy to achieve and with high levels of safety: The travel speed, brakes and dead man's switch are all controlled by easily reached pedals. All other functions can be controlled from the convenient control unit.
The optional height-adjustable footplate and the adjustable steering wheel ensure a comfortable seating position for all operators. The 360° steering mode allows shunting by continuous changes of direction of travel with only a few turns of the steering wheel. The changeover between forward and reverse can also be performed simply by pressing a button.
The large display offers a quick overview of the steering setting, battery status and the available travel programs.
In addition they offer the advantages of a sturdy design: The frame and load sections are designed for capacities up to 3,300 kg.
The ESE 533 draws its energy for even the most intensive applications from high-power batteries with a capacity of up to 1.0 Ah.
Greater efficiency with three-phase AC technology
- Powerful acceleration.
- No carbon brushes – maintenance-free drive motor.
- Energy recovery with regenerative braking.

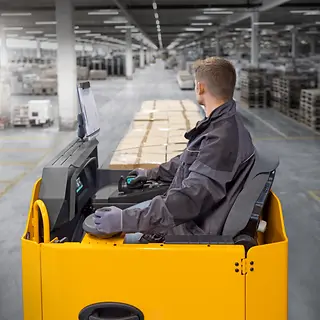

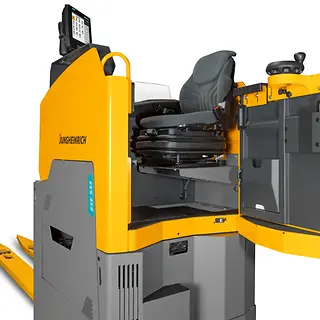

- Adjustable seat (seating position / body weight) for all operators.
- Individual foot height adjustment.
- Important controls within easy reach.
- Generous space.
- 360° 3-phase steering with optimised steering wheel position.
- Steering wheel adjustment.

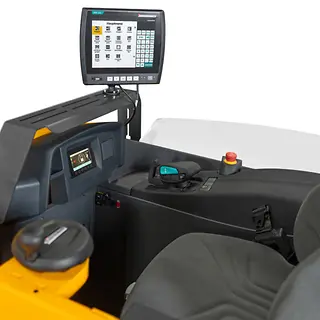

Easy operation with soloPILOT
- All controls are within the operator's field of vision and a single function is clearly assigned to each one.
- Comfortable armrest.

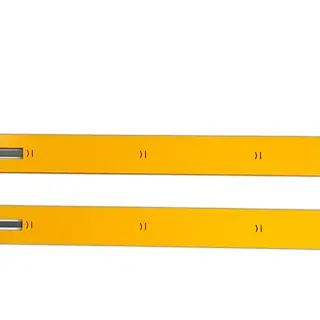

Load sections for lifting pallets lengthways and traverse
- Crossways and lengthways pallet lifting.
- Various fork lengths.

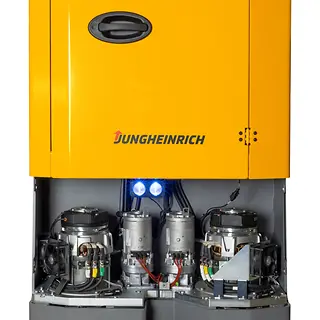

Reduced maintenance costs
- The drawbars are easy to adjust.
- Quick access to all components through large, easy to open service hatches.
- Thermal separation of drive motor, hydraulics and electrical systems.
- Maintenance-free 3-phase AC drive motor without carbon brushes.
- 48 V /1000 Ah EPzB.
- Lateral battery exchange.
Easy-to-read operator display
- Display of direction of travel and wheel position.
- Battery status with residual time display.
- Elapsed distance.
- 3 adjustable travel programs for individual adjustment to any requirements.
- Operating hours and time of day.
