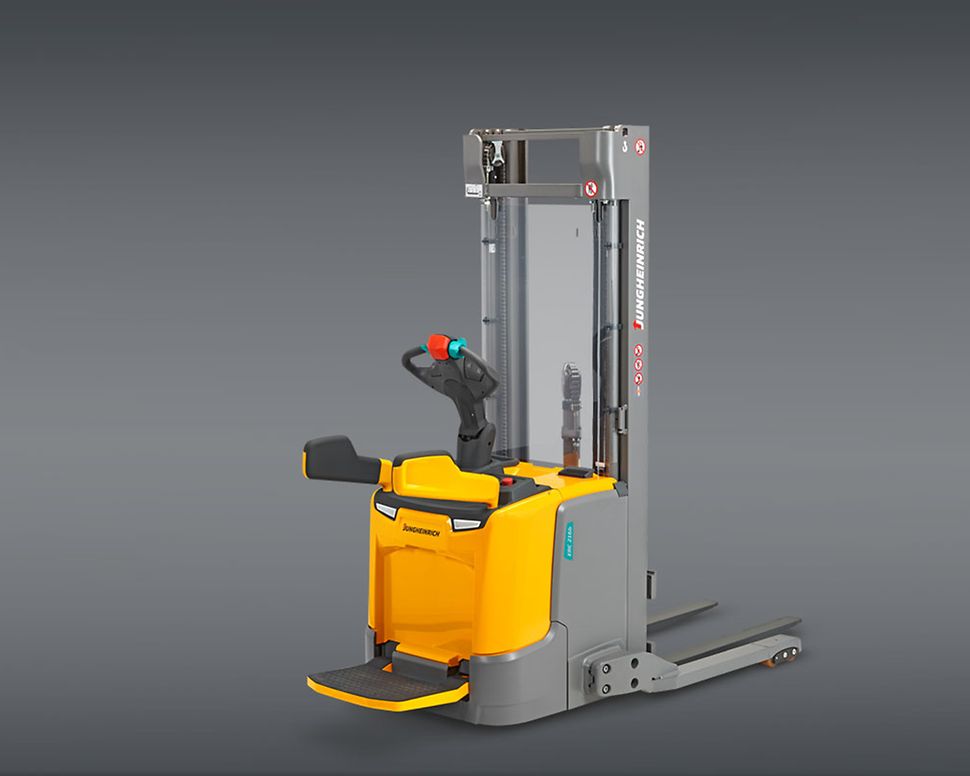

Stage ERC 212b - 220b
Electric pallet stackers

ERC 220b

Load capacity
2,000 kg
Free lift
up to 1,745 mm
Lift height
up to 6,000 mm
Load centre distance
600 mm
Travel speed
unladen 10 km/h
Lift speed
unladen 0.34 m/s
Battery voltage
24 V
Battery capacity
375 Ah
Weight including battery
1,316 kg

Rental terms

Benefits

The flexible and efficient ERC 2b pedestrian stackers are specifically designed for the handling of special goods. Their support arms are laterally offset and their forged forks can be lowered completely to the ground. This makes it possible to pick up load units from below. The forks are available in different variations. Our assistance systems also guarantee the following: operationCONTROL warns the operator when the residual capacity is exceeded, while positionCONTROL enables the selection of a predefined lifting height for safe and efficient load handling. The strong and particularly precise lift motor allows for very gentle lifting and lowering of cargo at heights up to 6 metres. In addition, both the four-wheel concept and optional assistance systems such as the overload warning system operationCONTROL or the lifting height preselection positionCONTROL ensure more safety and efficiency in everyday warehouse operations.
